Client
DB InfraGO
Place of performance
Europa City Central Station Berlin
Execution period
08/2021 - 12/2025
Digital Radio for the S-Bahn Berlin Tunnels
In 2021, STRABAG Infrastructure & Safety Solutions was awarded the contract to equip the new tunnels for Berlin Central Station with digital radio (dBOS).
In 2011, DB InfraGO AG awarded the contract to extend the S-Bahn North Ring by the two stations Westhafen and Wedding and to connect it to Berlin Central Station.

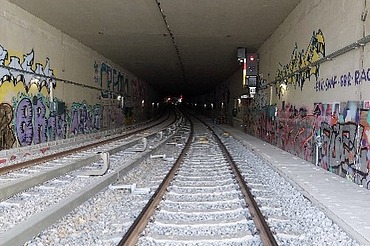

For this purpose, two tunnel tubes each 410 m long had to be constructed to pass beneath the ring railway tracks, along with a 190 m-long open-cut section and subsequently a tunnel of approximately 610 m leading to Berlin Central Station.
After completion of the construction works, SISS was commissioned in 2021 to equip the tunnels, the open-cut section, and the passerelle with a digital radio system.
Services in Detail
- Installation of a digital radio system (dBOS) in the frequency range from 380 to 395 MHz
- Commissioning and level adjustment of the complete radio system
- 2 head-end stations and 4 tunnel radio base stations
- Setup with redundancy and fiber switchover (primary and secondary Optical Master Unit)
- Uninterruptible signal switching
- Ensuring twelve hours of operation in the event of a power failure
- Integration of the fire brigade radio system
- Support of the client during acceptance by the EBA (Federal Railway Authority)
- Proof of radio coverage and acceptance of the system together with the users (Authorized Body Berlin, Fire Brigade)
